Victorian Tiles Restoration for Worn Minton Floor Makeovers

What Causes Persistent Dullness of the Minton Floor in Walsall, Despite Cleaning Efforts?

Assessing the Condition of Victorian Tiles for Effective Restoration

If your <a href="https://electroquench.com/caring-for-victorian-tiles-in-surrey-a-guide-to-heritage-preservation/">Victorian tiles</a> appear dull even after several cleaning sessions, the underlying issue is likely not just surface dirt but rather trapped contaminants and structural movement. The Minton hallway in Walsall displayed signs of surface compromise, with muted colours, loose tiles, an outdated sealing layer, and residues embedded within the clay. Regular mopping merely redistributed the grime instead of removing it effectively. This scenario highlighted the necessity for restoration, which required specialised techniques that go beyond standard cleaning methods.

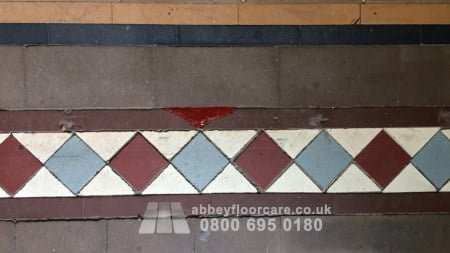

The Walsall hallway maintained its status as an original patterned entrance floor; however, the surface did not reflect the vibrant contrasts of red, buff, cream, and dark clay, which are characteristic of a well-restored Minton layout. Foot traffic had pressed fine soil into the tiles, while the previous topical sealer diminished the overall finish. Darkened grout lines were a result of accumulated surface residues. A similar case was observed in the Minton tile floor restoration in Ovington, where prior coverings and compacted dirt concealed the original floor until restoration work unveiled the intricate pattern.

Walsall is notable for its late Victorian and Edwardian terraced houses, alongside interwar semi-detached homes and post-war housing developments. Much of the older housing stock dates back to the late 19th and early 20th centuries, making Victorian tile floors particularly common in entrances, porches, pathways, and occasionally kitchens within these historic properties. Situated in the West Midlands metropolitan county, Walsall is governed by Walsall Council, with the majority of central areas designated by the WS postcode districts. The town's rich industrial heritage and well-preserved period housing contribute to the prevalence of original clay and encaustic tile floors, often hidden beneath modern coverings or outdated sealers.

How to Identify Hidden Residues That Contribute to the Dull Appearance of Tiles?

The existence of trapped residues explains the worn appearance of the hallway despite continuous cleaning efforts. The porous nature of the clay surface allowed dirt, old cleaning solutions, waxes, and coating residues to settle beneath the visible layer of tiles. While fresh water could temporarily moisten the contamination, it was inadequate for complete removal. This situation illustrates the practical effects of tile porosity on an aging Minton floor: soil infiltrates the pores, accumulates around grout lines, and results in a flat, dull look despite diligent cleaning.

The previous topical sealer created an inconsistent barrier across the floor. Coatings that initially provided a temporary shine eventually degraded into sticky residues, trapping grime and creating darker patches in areas where the finish had worn thin due to foot traffic. The restoration process required careful stripping of the old sealer to release the embedded residues, thoroughly rinsing the floor, and extracting the resulting slurry with a wet vacuum before any protective finish could be applied.

Contamination from carpet adhesives posed an additional challenge, as numerous Walsall hallway tiles had been previously covered with carpet, linoleum, or vinyl at various times. A hidden layer could be concealed beneath thick glue, bitumen residues, tape remnants, and staining that only became apparent upon removal of the covering. In this case, no significant adhesive presence dominated the hallway; however, the inspection sought out brownish glue, black bitumen, softened coatings, and scraper marks, as these residues could influence the restoration sequence.

How Does Moisture Behaviour and Tile Stability Impact Restoration Efforts?

The characteristics of old permeable sub-floors significantly affected the cleaning and sealing methods applicable to the Walsall floor. Excess water can penetrate the porous clay, reach the underlying bedding, and lead to issues such as tile movement, lifting, dampness, salt reactions, or an unstable foundation prior to the application of sealers. This moisture behaviour mandated a reliance on controlled cleaning, careful rinsing, and extraction rather than flooding the hallway with water.

Tile movement was a critical factor to consider, as water and slurry could infiltrate beneath raised edges and into gaps. Once slurry dries beneath the tile surface, the floor may continue to appear dirty from the edges even after the main surface has been cleaned. The restoration process approached the floor as a cohesive historical assembly: clay tiles, grout lines, bedding, moisture pathways, and breathable protective measures all needed to function together harmoniously.

During the survey, the condition of missing tiles, backfilled doorway patches, exposed sub-floor areas, cement leveling compound backfill, and previous repair infills were also evaluated. Cement leveling can disrupt the original tile pattern, obstructing visual continuity and leaving a repaired hallway looking patchy rather than seamless. This Walsall floor required primarily local resetting rather than extensive replacement work; however, assessing the doorway, original tiles, and sub-floor condition ensured that a simple clean was not mistaken for a proper restoration.

Why Is This Restoration Project Necessary?

This undertaking qualified as a restoration because mere cleaning would not rectify loose tiles or address the failures of old coatings. The task was crucial to tackle compacted grime, surface coatings, grout line residues, moisture risks, and unstable areas before any sealing could occur. A comparable restoration sequence is documented in the Victorian tile restoration case study in Penkhull, where loose sections and damaged joints also required reintegration into the overall floor layout to achieve a visually coherent result.

The original Minton pattern had not disappeared; rather, it was obscured from view. Restoration effectively removed the old products and ingrained dirt that muted the colours, subsequently protecting the clay with a breathable finish instead of a heavy surface film. Following professional intervention, the floor was anticipated to exhibit a significantly improved appearance, and a professionally restored and properly sealed Victorian tile floor is far easier to clean and maintain compared to a worn or improperly treated floor.

Ongoing maintenance is essential for preserving the restored clay surface by removing dry grit before wet mopping and utilising a pH-neutral cleaner instead of harsh household chemicals. Strong cleaners should be avoided as they may leave alkaline residues, bleach grout lines, and shorten the lifespan of the sealed finish. Broader maintenance principles for older porous clay floors are detailed in the Victorian and Minton tile cleaning hub, which offers support for the aftercare decisions made in this Walsall case study.

What Underlying Factors Led to Loose Tiles and Deep Soil in This Restoration Project?

The presence of loose Minton tiles and deep soil necessitated the restoration of this hallway, as the underlying issues resided beneath the visible surface. The homeowner observed dull colours, dark joints, and unstable areas; however, the root causes were movement, trapped residues, and contaminated slurry paths beneath and between the original tiles. Structural re-bedding was essential to address these concerns before deep cleaning could effectively restore the floor to a uniform state.

The removal of slurry was vital, as loosened soil, rinse water, mineral salts, and old coating residues needed to be extracted from the tile pores rather than allowed to re-dry within them. The restoration employed controlled water, agitation, rinsing, and wet vacuum removal, ensuring the floor was cleaned without excessively saturating the old permeable sub-floor. Similar movement and moisture behaviours are discussed in the right way to restore Victorian tiles properly, illustrating how stabilization and breathable protection are integral components of the historical flooring restoration sequence.

Stabilising loose tiles is essential before deep cleaning can uniformly restore the floor.

What Techniques Were Utilised to Stabilise the Walsall Hallway While Preserving the Original Tiles?

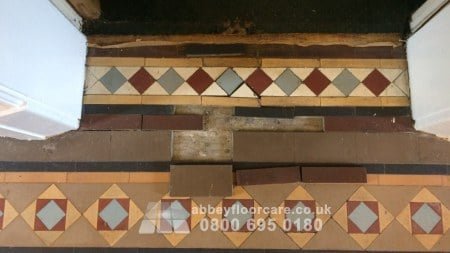

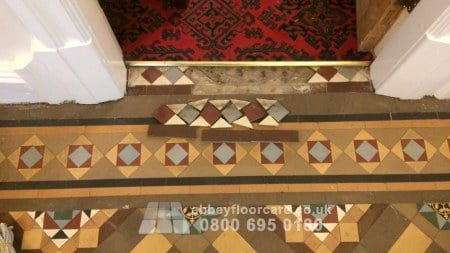

Scrubbing a loose Minton hallway before stabilisation risks driving slurry beneath the tiles, potentially harming fragile edges. In this case, loose sections were carefully lifted, old bedding and residues were removed, and the tiles were reset to uphold the integrity of the original layout. This approach ensured that repairs remained an integral part of the restoration workflow rather than evolving into a separate repair narrative.

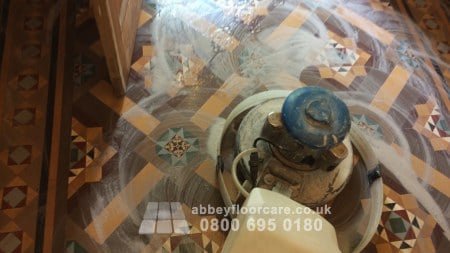

Thorough surface cleaning would have eliminated some visible grime, but it would not have resolved the issues associated with the old sealer, grout smears, mineral salts, and residues lodged within the pores. Controlled restoration involved using an alkaline cleaner, scrubbing pad, rotary machine, clean rinse water, and wet vacuum extraction to remove contaminated slurry from the tile surface and joints. In instances where acid wash neutralisation was necessary due to alkalinity, traces of cement haze or mineral salts were rinsed away before moisture could evaporate and disturb the colour balance.

Careful stabilisation safeguarded the original tiles, as the process was dictated by the floor's overall condition rather than applying a uniform approach across the entire area. Broken tiles, missing tiles, and the need for matching replacement tiles were all taken into account to ensure that the pattern exhibited continuity. This hallway primarily required resetting, thorough cleaning, and breathable protection. This sequence restored the floor's appearance, simplified surface maintenance, and avoided grinding down the historic clay face.

In What Ways Did the Restoration Process Enhance Clarity While Preserving the Historic Character?

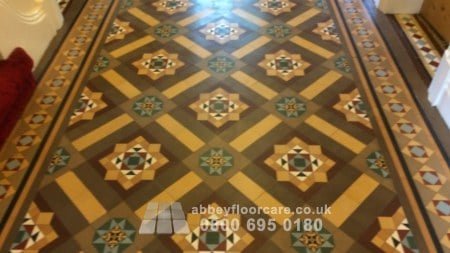

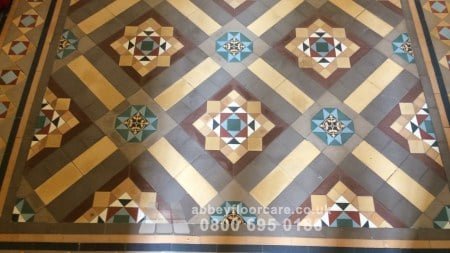

If your Victorian tiles show colours obscured by layers of dull wear, restoration should enhance definition while retaining the genuine age of the floor. The Walsall floor regained its vibrant contrasts as old coatings, embedded residues, and dark joint contamination were carefully eliminated from the clay surface. The original Minton pattern became more prominent, while authentic signs of traffic wear and historical character remained visible.

The preservation of historic dishing was paramount, as grinding the floor flat would have removed original fired clay from the tile surface. Dishing signifies permanent wear accumulated over decades of foot traffic and should be viewed as a testament to the floor's history rather than a flaw, provided the finished floor maintains its historical context. The protective finish applied was a breathable colour-enhancing sealer that penetrated the pores, was buffed off without leaving a superficial coating, and provided stain resistance while allowing moisture to escape.

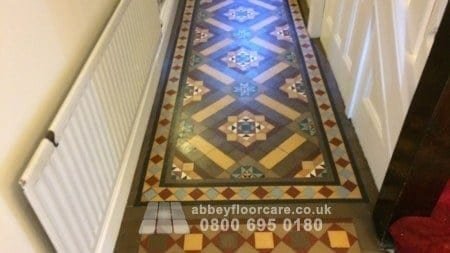

The completed hallway exhibited a significantly enhanced appearance compared to its pre-restoration state and, in many respects, exceeded how it might have looked under outdated domestic coatings. The sealed surface became easier to maintain, as removing dry grit, using neutral pH cleaning, and resealing at appropriate intervals helped preserve the restored colour depth. The behaviour of colour in worn patterned clay is further explored in restoring colour and pigment to faded Victorian mosaic tiles, which delves into surface wear and clay pigment depth in greater detail.

Where Can You Access Further Information on Common Victorian Tile Challenges?

Understanding prevalent Victorian tile challenges requires a holistic context since residues, loose sections, faded colours, and missing pieces seldom occur in isolation. The Walsall hallway illustrates why historic floors necessitate a comprehensive restoration approach: the original tiles, grout lines, moisture pathways, coating histories, and final protective measures all contributed to the overall outcome. A related Minton hallway project is detailed in the Minton tile hallway restoration in Stafford, where surface contamination and controlled extraction similarly shaped the final appearance of the floor.

When dealing with broken tiles, missing tiles, or areas of old repair that disrupt a Victorian hallway pattern, it is crucial to source and match replacement tiles thoughtfully. Quality repair work respects the original size, colour, border logic, thickness, and layout of the old floor to ensure new work blends seamlessly with the existing design. More extensive cleaning, sealing, and aftercare guidance can be found in the Victorian and Minton tile cleaning hub, which connects this Walsall outcome to broader material guidance.

Proper ongoing maintenance remains vital for prolonging the life of the restored floor. A tailored handover should provide practical advice: remove grit before wet cleaning, utilise a pH-neutral maintenance cleaner, avoid bleach or steam cleaning, and assess sealing processes before the surface begins to absorb spills rapidly again. Simple yet essential.
