Concrete Floor Thickness: Guidelines for Car Hoist Installation

Essential Factors to Consider for a Successful Car Hoist Installation in Your Garage

If you are contemplating the installation of a car hoist in your garage, it is absolutely crucial to ensure that your concrete floor adheres to the necessary specifications. A robust and stable foundation is not just important for the effective functionality of the hoist, but it also plays a vital role in protecting your vehicles and anyone operating the equipment. By thoroughly preparing the site and strictly following installation guidelines, you can significantly enhance both the performance and longevity of your car hoist, ultimately making your investment worthwhile and safe for everyday use.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is vital as it enables the even distribution of weight from both the vehicle and the hoist, thereby minimising the potential risk of cracking or sinking over time. For heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially extending up to 150mm (6 inches), to ensure optimal performance, stability, and safety during operation. Ensuring that your concrete meets these standards will enhance your hoisting experience and ensure the safety of your garage.

Comprehensive Steps to Determine the Necessary Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a critical aspect in ensuring the safe installation and operation of a car hoist. There are several factors that must be considered when evaluating the appropriate depth for your slab to guarantee that it can adequately handle the loads it will experience during use. Understanding these essential factors will help prevent costly mistakes and significantly enhance the safety of your garage setup, ensuring your equipment operates as intended without unforeseen issues.

Assessing Load Capacity for Your Car Hoist Installation

Car hoists place substantial stress on the concrete floor beneath them. Therefore, it is crucial to comprehend the total weight that your concrete floor must support. This includes not only the weight of the vehicle itself but also the considerable weight of the hoist, which can add significantly to the load on the floor. Understanding this load is vital to ensure that your installation is safe and effective.

A standard passenger vehicle typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Furthermore, it is wise to factor in extra weight as a safety buffer to ensure that the structure can withstand unforeseen circumstances. Adequately assessing the total weight ensures that your concrete slab can support the combined forces safely, thus preventing any structural failures.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, if you plan to lift significantly heavier vehicles, you may need to consider a thicker slab to ensure safety and stability during operation. Consulting with a structural engineer is a prudent decision, as they possess the expertise to offer tailored advice and assist you in accurately calculating the precise thickness required based on your unique circumstances and requirements.

Understanding Different Types of Car Hoists and Their Concrete Thickness Needs

It is essential to recognise that different types of car hoists come with specific requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners looking to incorporate a car hoist into their garage, and understanding these differences can greatly influence your installation process.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This design is crucial for ensuring that the weight is distributed properly and does not lead to structural weaknesses in your garage.

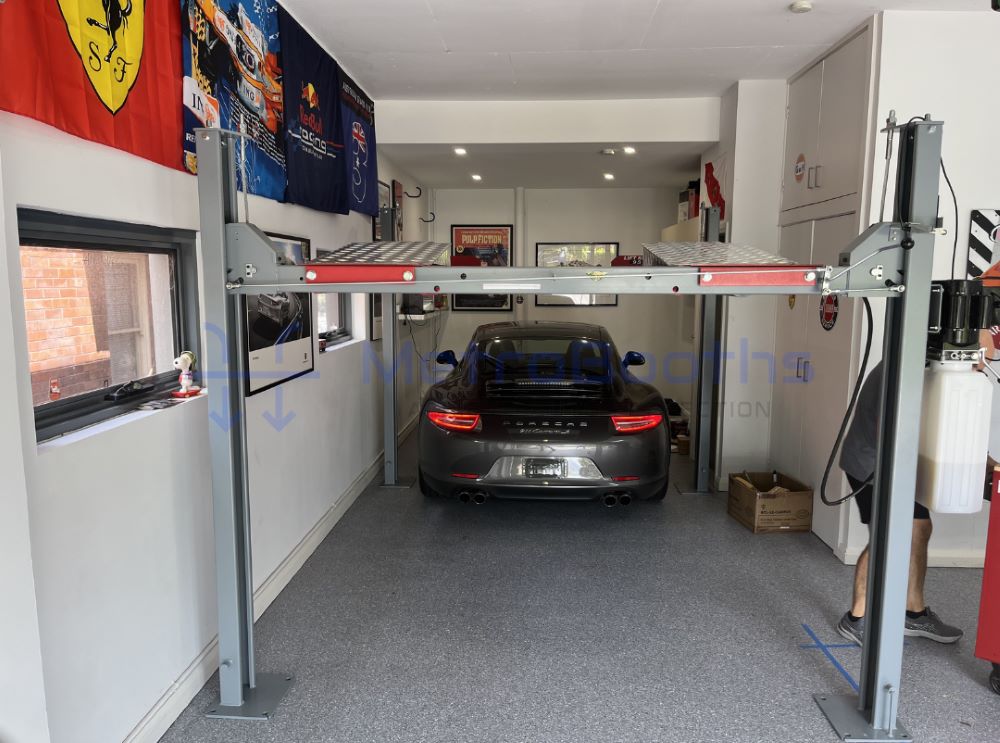

Conversely, four-post lifts distribute weight more evenly across a larger area, allowing them to operate efficiently with a slightly thinner slab, usually within the range of 100 mm to 125 mm. This knowledge significantly influences your planning and installation process, as choosing the right hoist for your needs can optimise both performance and safety.

Always consult the manufacturer's specifications for the hoist you are considering, as they will typically specify the minimum concrete thickness required for safe operation. Adhering to these guidelines is essential for the optimal performance and longevity of your equipment, ensuring that your investment remains secure over time.

Bear in mind that these recommendations are meant to serve as general guidelines. Your specific needs may vary based on the configuration of your garage and the types of vehicles you plan to lift, so taking the time to assess your unique situation is paramount.

Understanding the Significance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is equally as important as its thickness. Stronger concrete can often be successfully employed at a thinner depth while still providing adequate support for heavy loads, particularly relevant in the context of a car hoist installation. Selecting the right materials will greatly enhance the safety and reliability of your setup.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting. This choice significantly contributes to the overall durability of the installation.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor, potentially allowing you to utilise a thinner slab while still ensuring it effectively supports heavy loads during operation. This added layer of security can prevent future complications and extend the life of your installation.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, a vital consideration for budget-conscious homeowners. By balancing quality and cost, you can achieve a safe and effective installation without overspending.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This addition can help mitigate the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation and offering peace of mind in the performance of your hoist.

Key Installation Considerations for Ensuring Optimal Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and consistent floor maintenance are of paramount importance. By giving careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately safeguarding your investment and ensuring that your garage remains functional and efficient.

Critical Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before installing your car hoist, it is imperative to verify that your concrete floor meets all essential specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and devoid of any cracks to ensure optimal performance and safety during use. This attention to detail is crucial for preventing future issues that could arise from inadequate preparation.

For new concrete pours, it is crucial to use steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Moreover, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability. This foresight will prevent any structural weaknesses from developing during operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, consulting a professional who can accurately assess its condition is highly advisable. Their expertise can provide you with confidence in your installation.

Vital Ongoing Maintenance for Your Car Hoist After Installation

Once your car hoist is installed, it is vital to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, addressing any issues promptly to prevent larger complications that could affect the hoist's functionality. Early intervention can save you significant repair costs in the long run.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, using protective mats under the lift arms can help minimise wear and tear on the floor, thereby extending its lifespan and maintaining its integrity.

Regularly checking the tightness of the anchor bolts is also crucial, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This simple maintenance task can prevent costly repairs and ensure safe usage, allowing you to rely on your hoist for years to come.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly prolong the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any homeowner committed to maintaining their garage.

Frequently Asked Questions About Car Hoist Installation and Concrete Thickness Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts, providing you with valuable insights before proceeding with your installation.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may necessitate thicker slabs for safe operation, ensuring that your installation is secure and reliable.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is prudent to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and the safety of your equipment.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, adding a new layer of concrete may be necessary to achieve the appropriate depth for safe operation, ensuring that your hoist functions correctly.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use. This foresight is critical in avoiding future problems.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring that your installation is safe.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, allowing you to lift with confidence.
